Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-50MMRSE

Heavy Duty S2000 2 Bolt Pillow Block: S2-2PB-50MMRSE

S2000 Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$332.55

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealBIGBEARING
Product Information
Attribute nameAttribute value
Code105264
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size50mm

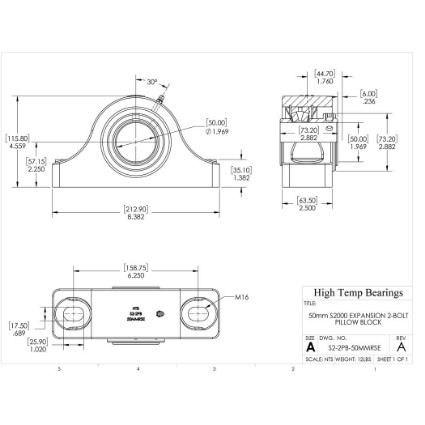

Dimensions
Attribute nameAttribute value
Bore (mm)50
A (mm)212.9
B (mm)63.5
C (mm)35.1
D (mm)73.2
G (mm)25.9
H (mm)57.15
J (mm)115.8
K (mm)17.5
L (mm)73.2
M Min (mm)150.9
M Max (mm)166.6
T (mm)44.7
X (mm)6
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity20230
Co (lb)Static load capacity24730
Mass
Attribute nameAttribute value
Weight(lbs)12
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM16
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2225
Max RPM-PTFE SealLimiting speed3180
Max RPM-Metal Labyrinth SealLimiting speed3180
