Single Row NUP Cylindrical Roller Bearing
$428.00

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410388
Shaft Size50mm
SealsNone
ConstructionTwo Flanges ID and Two OD
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

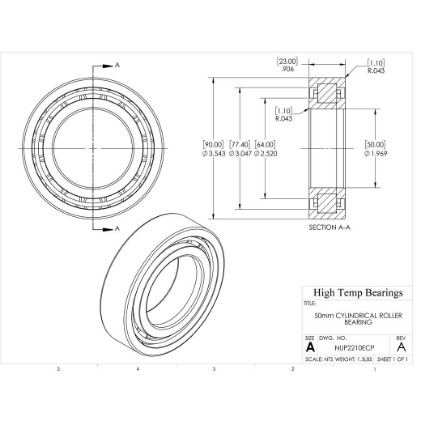

Dimensions

Attribute nameAttribute value
Bore (mm)50
D (mm)90
B (mm)23
d1 (mm)64
r1-r2 (mm)1.1
r3-r4 (mm)1.1
D1 (mm)77.4
F (mm)59.5

Abutment Dimensions

Attribute nameAttribute value
Da (mm)82.4
damin (mm)57
Damin-db (mm)66
ramax (mm)1

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed8500
Nmax (RPM)Limiting speed9000
C (lb)Dynamic load capacity20233
C0 (lb)Static load capacity19783
Pu (lb)Fatigue load limit2563
kThrust factor0.2

Mass

Attribute nameAttribute value
Weight(lbs)1.3

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
