Single Row NU Cylindrical Roller Bearing: NU315ECP

Single Row NU Cylindrical Roller Bearing: NU315ECP

Single Row NU Cylindrical Roller Bearing
$495.96
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

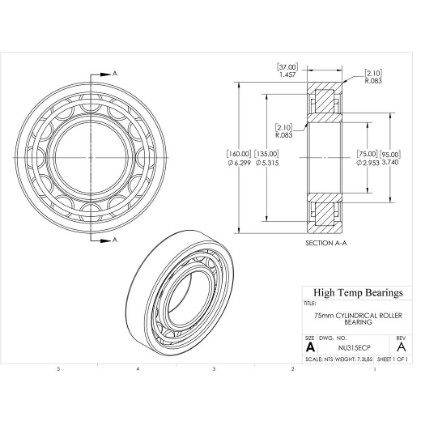

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size75mm
D (mm)160
B (mm)37
C (lb)62947
C0 (lb)59575
Pu (lb)7531
Nr (RPM)4500
Nmax (RPM)5300
Weight(lbs)7.3
Code410462
Bore (mm)75
Da (mm)148
damin (mm)87
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)135
Damin-db (mm)97
damax (mm)92
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
rbmax (mm)2
k0.15
t (mm)135
smax (mm)1.8
B1 (mm)11
B2 (mm)16.5
F (mm)95
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
