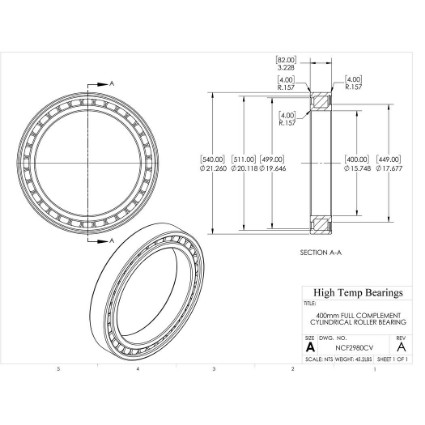

Full Complement Single Row Cylindrical Roller Bearing: NCF2980CV

Full Complement Single Row Cylindrical Roller Bearing: NCF2980CV

Full Complement Single Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Attribute nameAttribute value
ConstructionFull Complement
Shaft Size400mm
D (mm)540
B (mm)82
C (lb)370937
C0 (lb)775595
Pu (lb)69691
Nr (RPM)480
Nmax (RPM)600
Weight(lbs)45.2
Code410579
Bore (mm)400
damin (mm)415
d1 (mm)449
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Dbmax (mm)525
r1-r2 (mm)4
r3-r4 (mm)4
ramax (mm)3
rbmax (mm)3
k0.2
D1 (mm)499
smax (mm)5
das1 (mm)442
E (mm)511
PackageQTY1
UOMEA
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
