Full Complement Single Row Cylindrical Roller Bearing: NCF2936CV

Full Complement Single Row Cylindrical Roller Bearing: NCF2936CV

Full Complement Single Row Cylindrical Roller Bearing
$2,463.65

checkbox icon This item typically ship in 1-4 weeks.

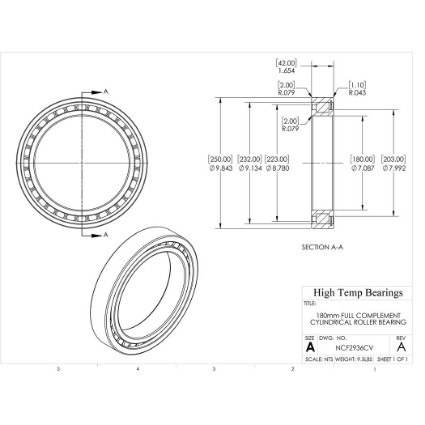

CAD
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute nameAttribute value
Code410565
Shaft Size180mm
SealsNone
ConstructionFull Complement
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)180
D (mm)250
B (mm)42
d1 (mm)203
r1-r2 (mm)2
r3-r4 (mm)1.1
D1 (mm)223
E (mm)232
Abutment Dimensions
Attribute nameAttribute value
damin (mm)189
Dbmax (mm)243
ramax (mm)2
rbmax (mm)1
smax (mm)2.5
das1 (mm)199
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed1100
Nmax (RPM)Limiting speed1400
C (lb)Dynamic load capacity87901
C0 (lb)Static load capacity156243
Pu (lb)Fatigue load limit16861
kThrust factor0.2
Mass
Attribute nameAttribute value
Weight(lbs)9.5
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
