Full Complement Single Row Cylindrical Roller Bearing: NCF18560VHB1

Full Complement Single Row Cylindrical Roller Bearing: NCF18560VHB1

Full Complement Single Row Cylindrical Roller Bearing
$16,486.80
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

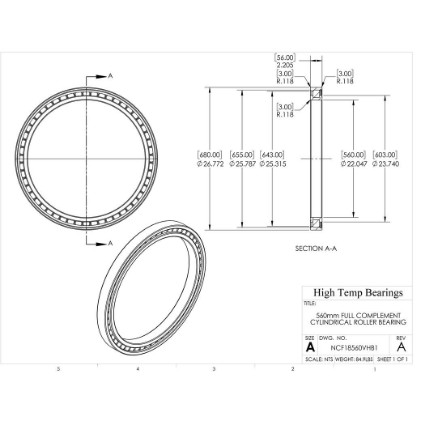

CAD
Specifications:
Attribute nameAttribute value
ConstructionFull Complement
Shaft Size560mm
D (mm)680
B (mm)56
C (lb)229306
C0 (lb)530552
Pu (lb)41815
Nr (RPM)340
Nmax (RPM)430
Weight(lbs)84.9
Code410588
Bore (mm)560
damin (mm)573
d1 (mm)603
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Dbmax (mm)667
r1-r2 (mm)3
r3-r4 (mm)3
ramax (mm)2.5
rbmax (mm)2.5
k0.1
D1 (mm)643
smax (mm)5
das1 (mm)597
E (mm)655
PackageQTY1
UOMEA
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
