25mm Eccentric Mounted Low Base Pillow Block Bearing|High Temp Bearings

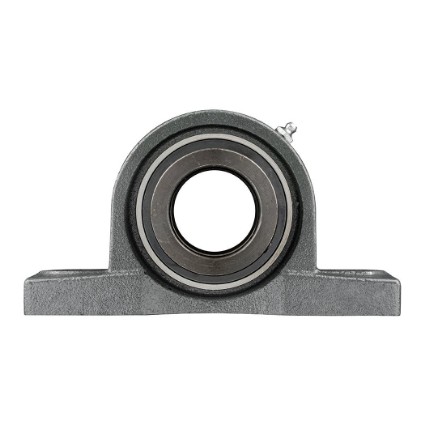

Picture of Eccentric Collar Low Base Pillow Block

Eccentric Collar Low Base Pillow Block Mounted Ball Bearing

$19.40

This product has a minimum quantity of 2

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and increased vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		103198
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		NA
Construction		Low Base Pillow Block
Shaft Size		25mm
Sealing		Standard
End Cap		None
Collar		Eccentric
Greasable	Re-lubrication	Greasable

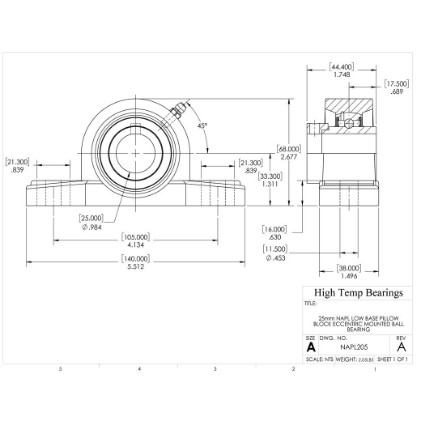

Dimensions

Attribute name		Attribute value
Bore (in)		0.9843
H (in)		1.311
L (in)		5.512
J (in)		4.134
N (in)		0.453
H1 (in)		0.63
H2 (in)		2.677
A (in)		1.496
S (in)		0.689
B (in)		1.748
N1 (in)		0.839

Mass

Attribute name		Attribute value
Weight(lbs)		2.05

Mounting Information

Attribute name		Attribute value
Bolt		3/8

Associated Products

Attribute name		Attribute value
Bearing Insert		NA205
Housing		PL205
