High Temperature Pillow Block: HUCP212-36KX

Picture of High Temperature Pillow Block

High Temperature Pillow Block: HUCP212-36KX

High Temperature Pillow Block Mounted Ball Bearing

$613.35

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration at high temperatures. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.

Free Ground Shipping on orders over $99 use Code "SHIPFREE" at checkout

Attribute name		Attribute value
Daily Shipping Deal		SHIPFREE

Product Information

Attribute name		Attribute value
Code		150189
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HU-KX
Construction		Pillow Block
Shaft Size		2-1/4"
Sealing		Silicone
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

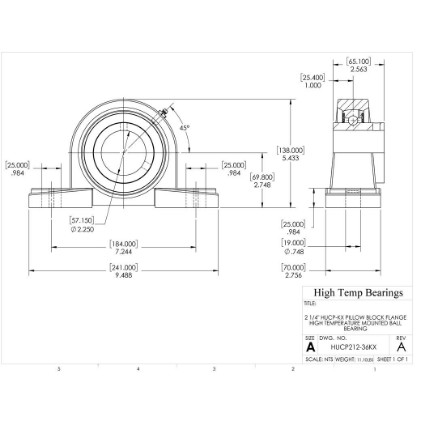

Dimensions

Attribute name		Attribute value
Bore (in)		2.25
H (in)		2.748
L (in)		9.488
J (in)		7.244
N (in)		0.748
H1 (in)		0.984
H2 (in)		5.433
A (in)		2.756
S (in)		1
B (in)		2.563
N1 (in)		0.984

Mass

Attribute name		Attribute value
Weight(lbs)		11.1

Mounting Information

Attribute name		Attribute value
Bolt		5/8

Associated Products

Attribute name		Attribute value
Bearing Insert		HUC212-36KX
Housing		P212
