High Temperature Setscrew Locking Ball Bearing Insert
$465.17

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and Installs into standard duty housings. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range. They are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease, and can be fully PM'd.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code102852
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesHU-KX
Shaft Size2-7/16"
CollarSetscrew
GreasableRe-lubricationGreasable
ConstructionSelf-Aligning

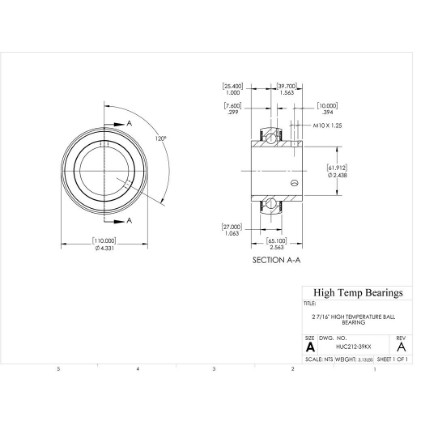

Dimensions

Attribute nameAttribute value
Bore (in)2.4375
D (in)4.337
B (in)2.563
S (in)1
C (in)1.63
h (in)0.2992
S1(in)1.563
G (in)0.3937
ds3/8-24 UNF

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic Load Capacity10736
C0 (lb)Static Load Capacity7403

Mass

Attribute nameAttribute value
Weight(lbs)3.2

Safe Loads

Attribute nameAttribute value
Tmin (F)-45
Tmax (F)400
