1-11/16" 1000 °F Mounted Carbon Bearing Insert|High Temp Bearings

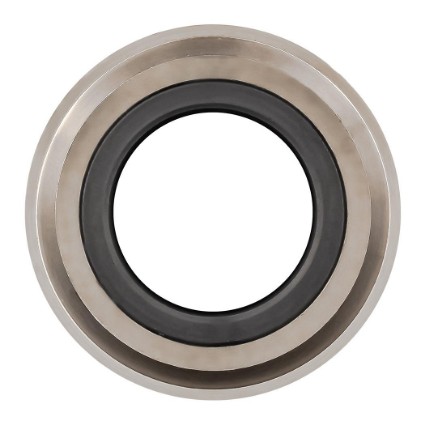

Picture of HT1000 Steel Backed Carbon Sleeve Bearing

Steel Backed 1000 °F Mounted Carbon Sleeve Bearing Insert

$367.83

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

Thermally fit carbon-graphite sleeve in a nickel-plated carbon steel backing ring. All mounted inserts will install into their respective conventional UC series housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		370390
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Shaft Size		1-11/16"
Material		HT1000

Dimensions

Attribute name		Attribute value
Bore (in)		1.696
ShaftDia (in)		1.688
A (in)		1.476
C (in)		0.87
L (in)		2.627
S (in)		3.342

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	4000
10 RPM (lb)	Load capacity at 10 RPM	1980
50 RPM (lb)	Load capacity at 50 RPM	1790
100 RPM (lb)	Load capacity at 100 RPM	895
200 RPM (lb)	Load capacity at 200 RPM	440
Max Cap Load (lb)		1905
Max Thrust Load (lb)		198

Mass

Attribute name		Attribute value
Weight(lbs)		1.73

Safe Loads

Attribute name		Attribute value
Tmax (F)		1000
Tmin (F)		-200
Tservice (F)	Max use temperature in air	1000
