1-15/16"Concentric Locking Take Up Mounted Bearing|High Temp Bearings

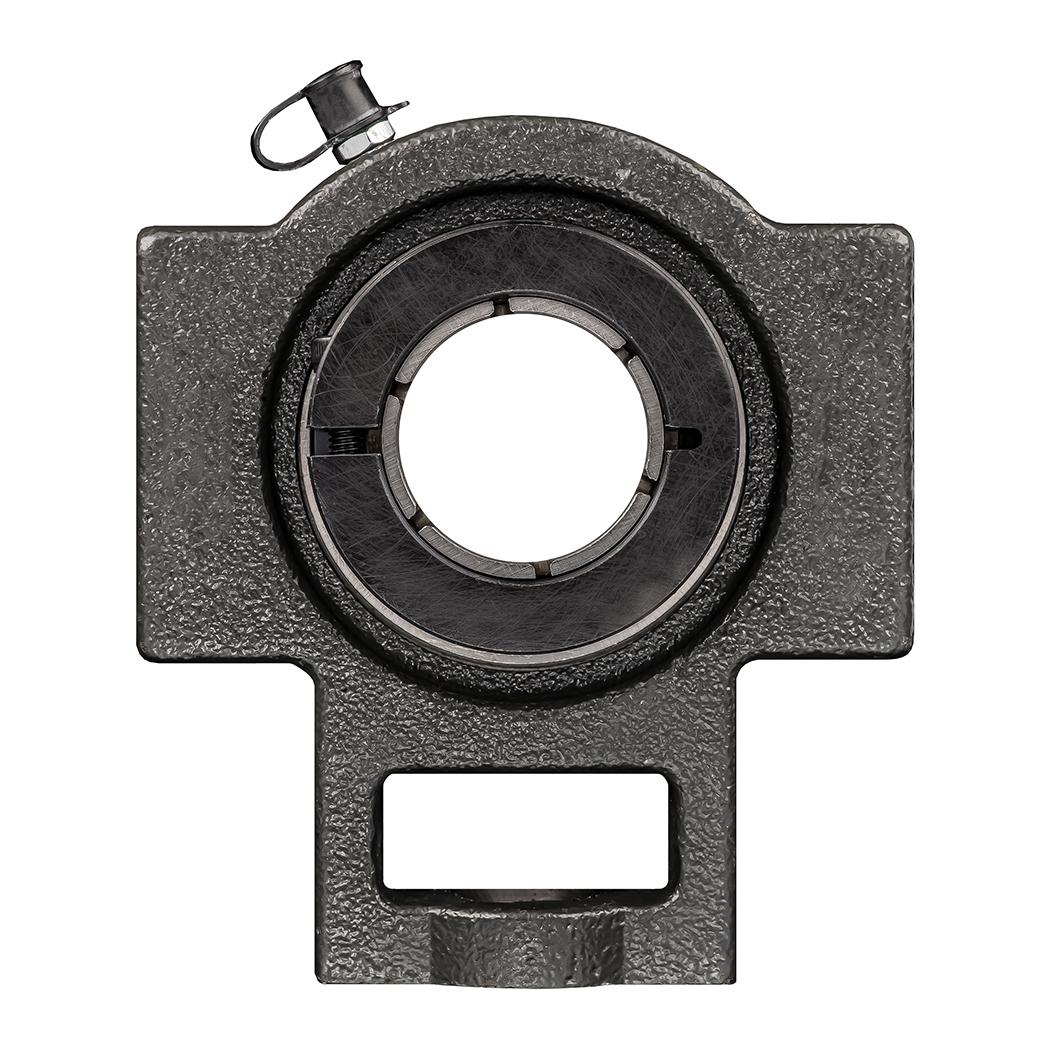

Picture of Concentric Locking Take Up Flange

Concentric Locking Take Up Mounted Bearing

$63.96

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

This bearing has a concentric locking grip that uniformly distributes clamping pressure around the shaft for a secure hold. It provides better control for high speed and vibration than alternative mounting ball bearing configurations without marring the shaft. The outer race features an anti-rotation pin to minimize insert movement due to vibration and installs into a standard cast iron housing

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110988
Shaft Size		1-15/16"
Series		HLT
Construction		Take Up
Sealing		Standard
End Cap		None
Collar		H-Lock
Greasable	Re-lubrication	Greasable
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

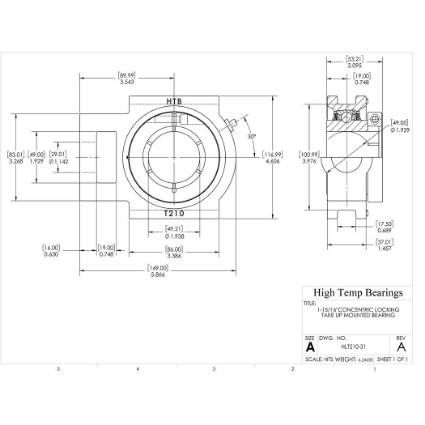

Dimensions

Attribute name		Attribute value
Bore (in)		1.9375
H (in)		4.606
L (in)		5.866
A2 (in)		1.457
A1 (in)		0.689
H1 (in)		3.976
H2 (in)		3.268
A (in)		1.929
N (in)		1.142
S (in)		0.748
B (in)		2.095
N1 (in)		1.929
L1 (in)		3.543
L2 (in)		0.63
L3 (in)		3.386
N2 (in)		0.748

Mass

Attribute name		Attribute value
Weight(lbs)		6.24

Associated Products

Attribute name		Attribute value
Bearing Insert		HL210-31
Housing		T210
