Heavy Duty Type-E Piloted Flange: ES-FCF-60MMRSE

Heavy Duty Type-E Piloted Flange: ES-FCF-60MMRSE

Type-E Expansion Piloted Flange Mounted Spherical Roller Bearing
$661.06
EA

checkbox icon This item ship within 24 hours.

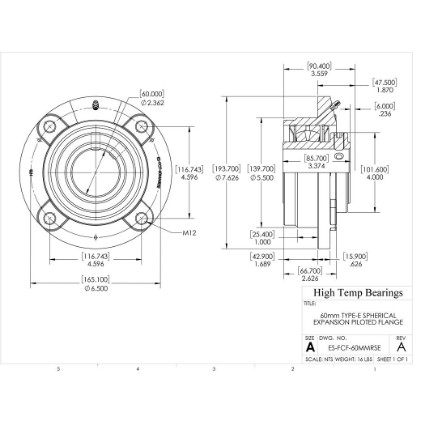

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size60mm
Dismount Thread7/16-14 UNC
A (mm)193.7
B (mm)66.7
C (mm)15.9
D (mm)101.6
BoltM12
G (mm)47.5
H (mm)25.4
K (mm)42.9
L (mm)85.7
M (mm)116.7
Z (mm)139.7
Co (lb)46090
Weight(lbs)16
Code105206
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)60
E (mm)165.1
T (mm)90.4
X (mm)6
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2360
Max RPM-Metal Labyrinth Seal2360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
