High Temperature Type E Piloted Flange: ES-FCF-219TSE-KX

High Temperature Type E Piloted Flange: ES-FCF-219TSE-KX

High Temperature Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$631.03
EA

checkbox icon This item typically ship in 1-4 weeks.

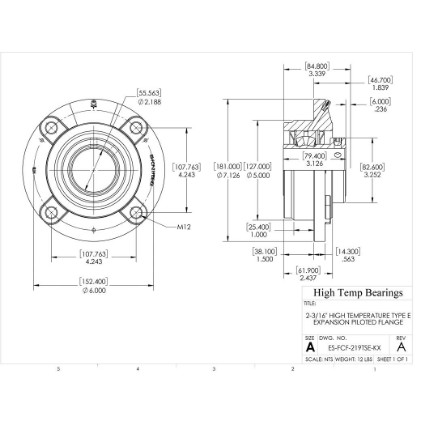

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size2-3/16"
Dismount Thread5/16-18 UNC
A (mm)181
B (mm)61.9
C (mm)14.3
D (mm)82.6
BoltM12
G (mm)46.7
H (mm)25.4
K (mm)38.1
L (mm)79.4
M (mm)107.8
Z (mm)127
Co (lb)28100
Weight(lbs)12
Code105646
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)55.5625
E (mm)152.4
T (mm)84.8
X (mm)6
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2800
Max RPM-Metal Labyrinth Seal2800
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
