High Temperature Type-E Mounted Spherical Roller Bearings
>
2-11/16" High Temperature Type E Non Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page
High Temperature Type E 4 Bolt Pillow Block: ES-4PB-269TSN-KX
High Temperature Type E 4 Bolt Pillow Block: ES-4PB-269TSN-KX

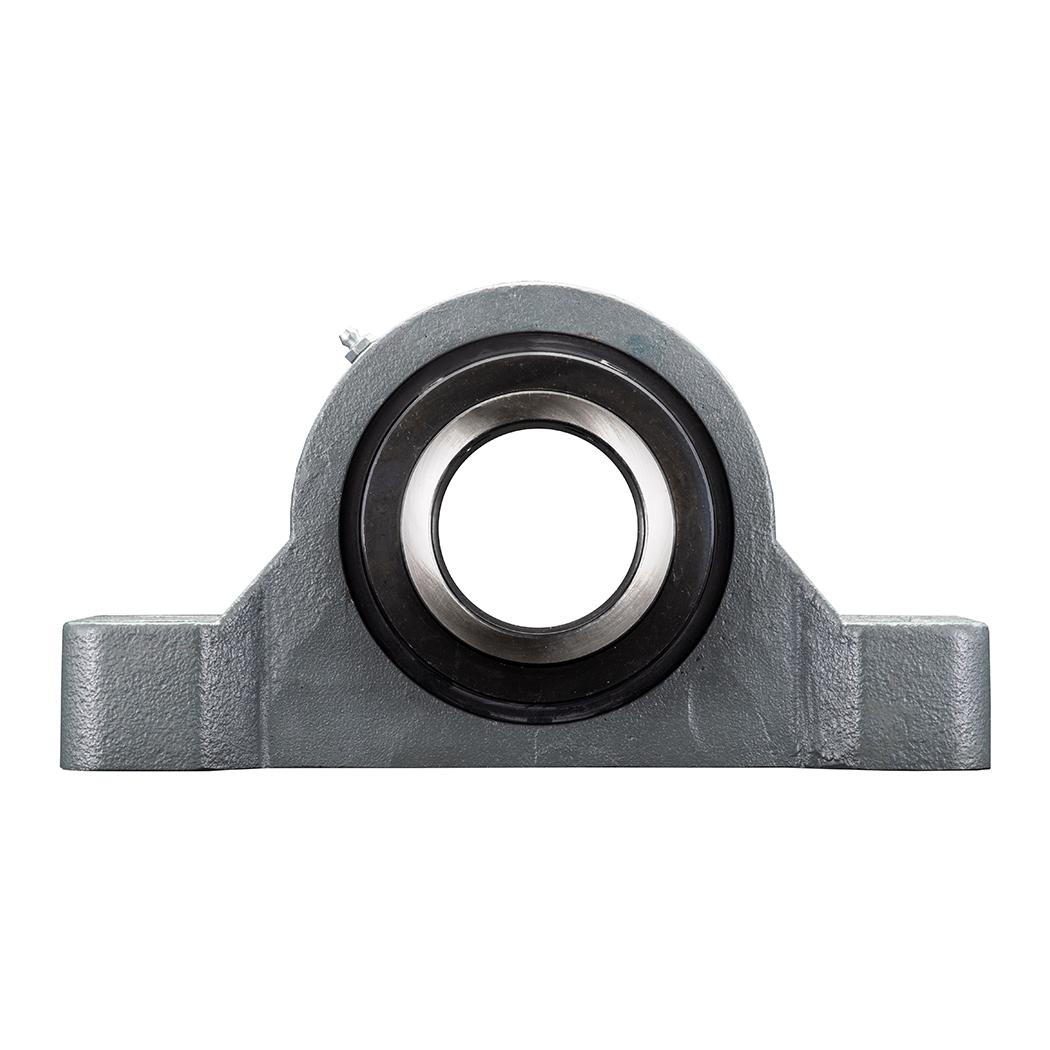

High Temperature Type E Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$983.52
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL

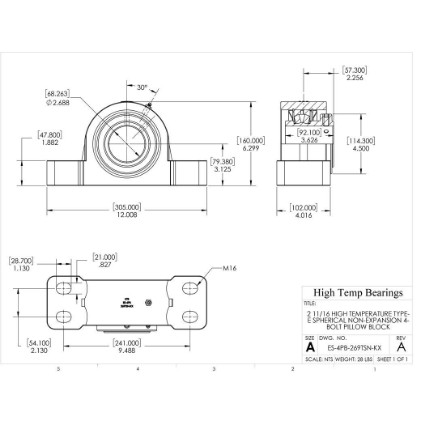

Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
2-11/16"
A (mm)
305
B (mm)
102
D (mm)
114.3
E (mm)
54.1
Bolt
M16
G (mm)
28.7
H (mm)
79.38
J (mm)
160
K (mm)
21
L (mm)
92.1
M Min (mm)
233
M Max (mm)
249
Co (lb)
52830
Weight(lbs)
28
Code
105711
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
68.2625
C (mm)
47.8
L1 (mm)
120.65
T (mm)
63.3
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
