3-15/16" High Temperature Type E Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
High Temperature Type E 4 Bolt Flange: ES-4BF-394TSN-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-394TSN-KX
High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$2,136.75
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
3-15/16"

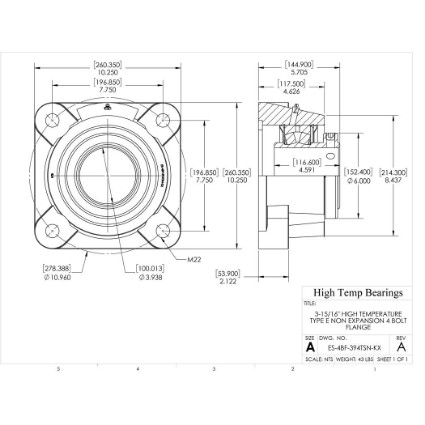

A (mm)
260.35
B (mm)
117.5
C (mm)
151.9
D (mm)
152.4
E (mm)
196.85
Bolt
M22
H (mm)
53.9
J (mm)
214.3
K (mm)
278.4
L (mm)
116.6
Co (lb)
112400
Weight(lbs)
43
Code
105870
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
100.0125
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
