Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>

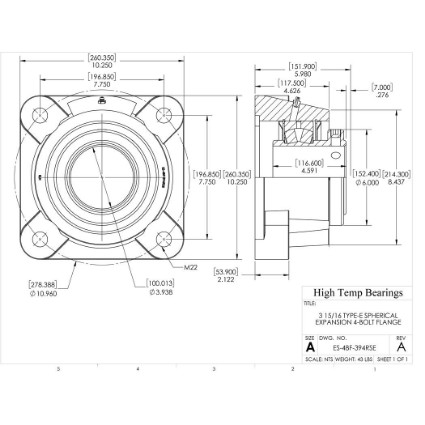

3-15/16" Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E 4 Bolt Flange: ES-4BF-394RSE
Heavy Duty Type E 4 Bolt Flange: ES-4BF-394RSE
Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$2,016.33
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
3-15/16"
A (mm)
260.35
B (mm)
117.5
C (mm)
151.9
D (mm)
152.4
E (mm)
196.85
Bolt
M22
H (mm)
53.9
J (mm)
214.3
K (mm)
278.4
L (mm)
116.6
Co (lb)
112400
Weight(lbs)
43
Code
105176
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
100.0125
X (mm)
7
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
