High Temperature Type E 2 Bolt Pillow Block: ES-2PB-244TSN-KX

High Temperature Type E 2 Bolt Pillow Block: ES-2PB-244TSN-KX

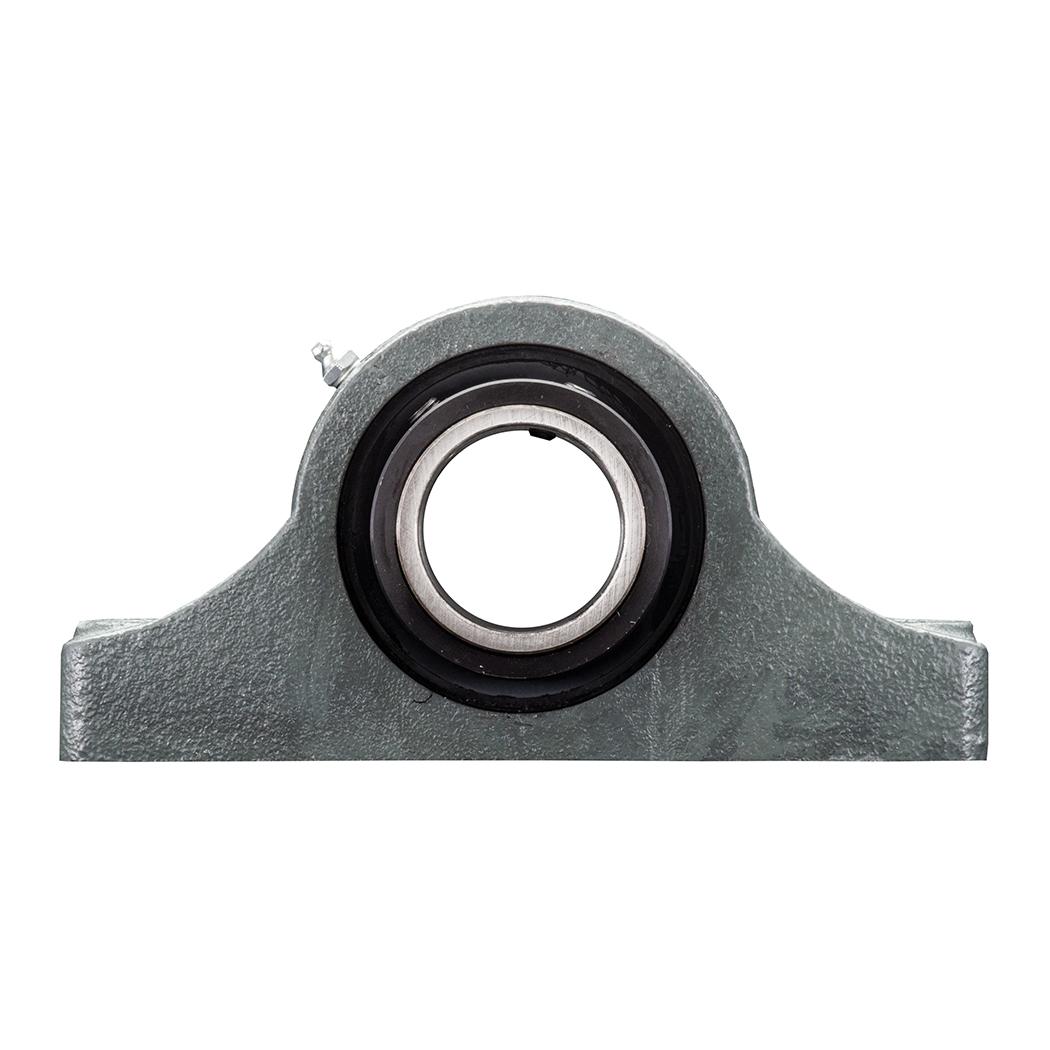

High Temperature Type E Non Expansion 2 Bolt Pillow Block Mounted Spherical Roller Bearing
$640.82
EA

checkbox icon This item typically ship in 1-4 weeks.

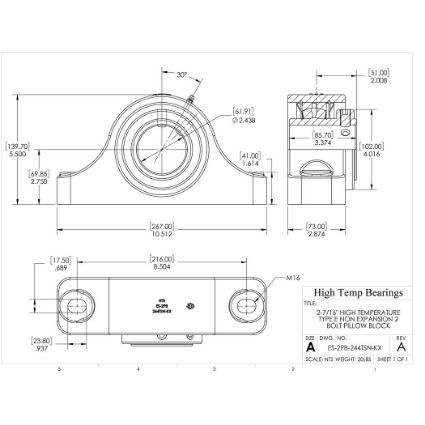

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-7/16"
A (mm)267
B (mm)73
D (mm)102
BoltM16
G (mm)23.8
H (mm)69.85
J (mm)139.7
K (mm)17.5
L (mm)85.7
M Min (mm)210
M Max (mm)222
Co (lb)46090
Weight(lbs)20
Code105661
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)61.9125
C (mm)41
L1 (mm)108
T (mm)57
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2300
Max RPM-Metal Labyrinth Seal2300
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
