Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$4,586.62

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

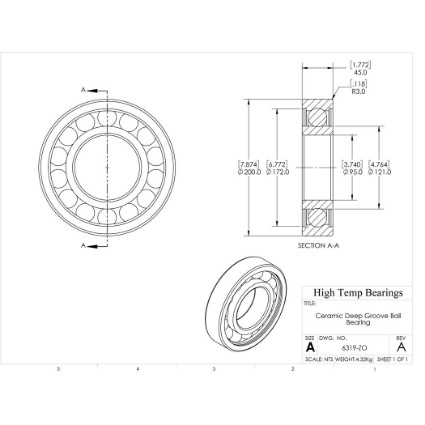

CAD

Specifications:

Description

Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code102060
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Construction482F Open Ceramic
DutyCeramic
SealsNone
SeriesZrO2
Shaft Size95mm
MaterialZrO2

Dimensions

Attribute nameAttribute value
Bore (mm)95
D (mm)200
r (mm)3
D2 (mm)172
d1 (mm)121
B (mm)45

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2.5
Da (mm)186
damin (mm)109

Calculation Data

Attribute nameAttribute value
Nmax (RPM)Limiting speed3180
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor13
C (lb)Dynamic load capacity10319
C0 (lb)Static load capacity8026

Mass

Attribute nameAttribute value
Weight(lbs)9.52

Tolerance Class

Attribute nameAttribute value
Clearance0.0005"

Safe Loads

Attribute nameAttribute value
Tmax (F)482
Tmin (F)-94
