Deep Groove, Single Row, Ceramic, Sealed ZrO2 Ball Bearing
$2,696.64

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential. One notable weakness is high-temperature steam will degrade Zirconia.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code102034
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SealsSeals
DutyCeramic
Construction482F Seals Ceramic
SeriesZrO2
Shaft Size85mm
MaterialZrO2

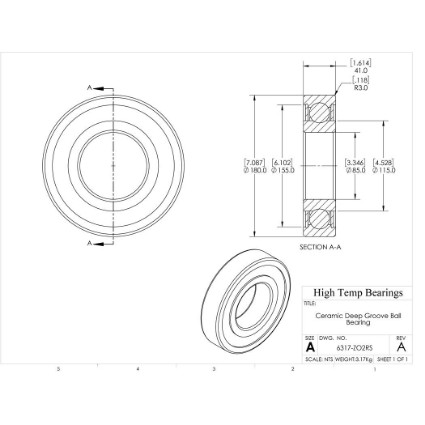

Dimensions

Attribute nameAttribute value
Bore (mm)85
D (mm)180
B (mm)41
r (mm)3
D2 (mm)155
d1 (mm)115

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2.5
Da (mm)166
damin (mm)99

Calculation Data

Attribute nameAttribute value
Nmax (RPM)Limiting speed2700
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor13
C (lb)Dynamic load capacity8970
C0 (lb)Static load capacity6528

Mass

Attribute nameAttribute value
Weight(lbs)6.98

Tolerance Class

Attribute nameAttribute value
Clearance0.0005"

Safe Loads

Attribute nameAttribute value
Tmax (F)482
Tmin (F)-94
