Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6305-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6305-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$248.97
This product has a minimum quantity of 2

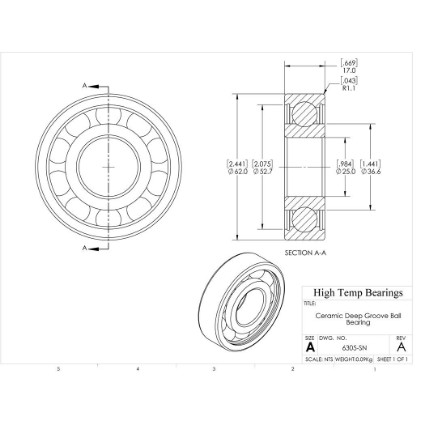

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)1158
C0 (lb)635
Nmax (RPM)9100
Weight(lbs)0.21
Code101880
PackageQTY1
UOMEA
C (kN)5.15
C0 (kN)2.825
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
