35mm 6207 High Temperature 1200 °C Ceramic Bearing|High Temp Bearings

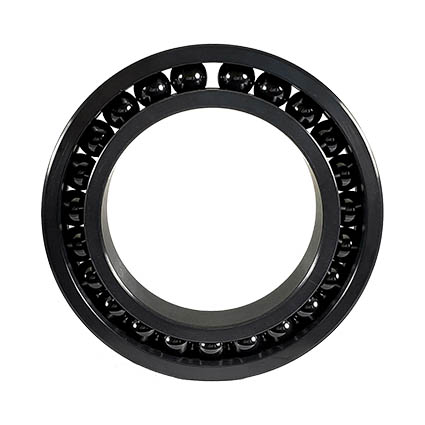

Picture of 1200°C Silicon Carbide Deep Groove Ball Bearing

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing

$273.74

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

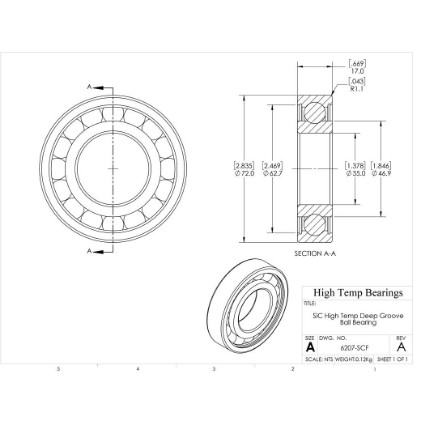

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		101601
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Construction		2192F Open
Duty		High Temperature
Seals		None
Series		SiC
Shaft Size		35mm
Material		SiC

Dimensions

Attribute name		Attribute value
Bore (mm)		35
D (mm)		72
B (mm)		17
r (mm)		1.1
D2 (mm)		62.7
d1 (mm)		46.9

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		1
Da (mm)		65
damin (mm)		42

Calculation Data

Attribute name		Attribute value
Nmax (RPM)	Limiting speed	4620
kr	Minimum radial load factor	25
ka	Minimum axial load factor	0.5
fo	Calculation factor	14
C (lb)	Dynamic load capacity	1156
C0 (lb)	Static load capacity	692

Mass

Attribute name		Attribute value
Weight(lbs)		0.25

Tolerance Class

Attribute name		Attribute value
Clearance		0.0005"

Safe Loads

Attribute name		Attribute value
Tmax (F)		2192
Tmin (F)		-112
