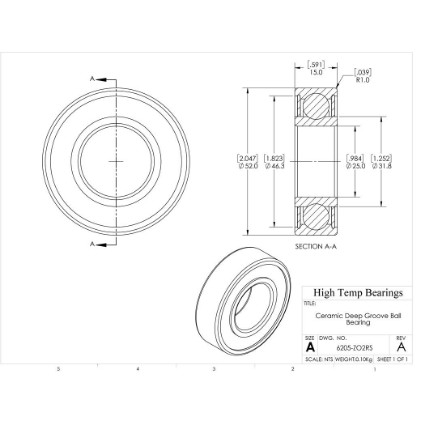

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6205-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6205-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$100.10
This product has a minimum quantity of 2
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)25
D (mm)52
B (mm)15
d1 (mm)31.8
D2 (mm)46.3
C (lb)944
C0 (lb)529
Nmax (RPM)9000
Weight(lbs)0.21
Code101583
PackageQTY1
UOMEA
C (kN)4.2
C0 (kN)2.355
Ra (mm)1
Da (mm)46.4
damin (mm)30.6
kr25
ka0.5
fo14
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
