Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of 80mm 61916 Deep Groove Open Ball Bearing
Deep Groove, Single Row, Open Ball Bearing
$321.08

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200558
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series61900
Construction248F Open
DutyStandard
SealsNone
Shaft Size80mm
Material52100

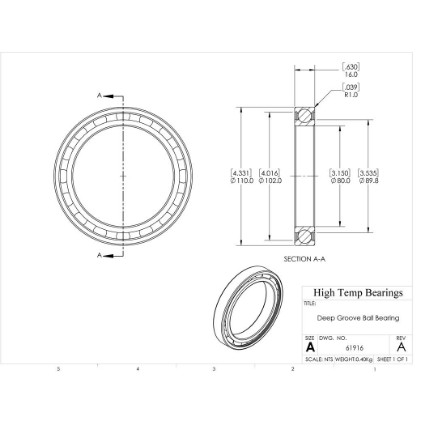

Dimensions

Attribute nameAttribute value
Bore (mm)80
D (mm)110
B (mm)16
r (mm)1
D2 (mm)102
d1 (mm)89.8

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)105
damin (mm)84.6

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed12000
Nmax (RPM)Limiting speed7500
krMinimum radial load factor20
kaMinimum axial load factor0.25
foCalculation factor14
C (lb)Dynamic load capacity5643
C0 (lb)Static load capacity4586
Pu (lb)Fatigue load limit229

Mass

Attribute nameAttribute value
Weight(lbs)0.88

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
