Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of 70mm 4314 Double Row Ball Bearing
Deep Groove, Double Row, Open Ball Bearing
$1,225.83

checkbox icon This item typically ship in 1-4 weeks.

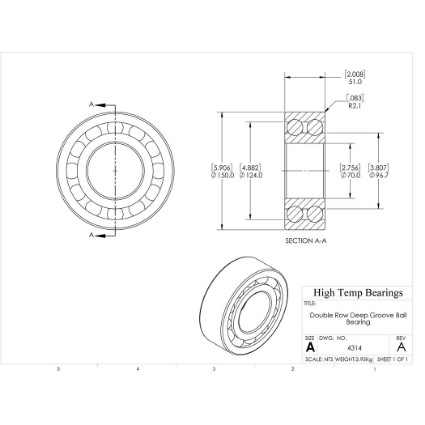

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200435
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series4300
Construction248F Open
DutyStandard
SealsNone
Shaft Size70mm
Material52100

Dimensions

Attribute nameAttribute value
D (mm)150
B (mm)51
r (mm)2.1
D2 (mm)124
d1 (mm)96.7
Bore (mm)70

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2
Da (mm)139
damin (mm)81

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed7000
Nmax (RPM)Limiting speed3800
krMinimum radial load factor60
foCalculation factor14
C (lb)Dynamic load capacity31024
C0 (lb)Static load capacity28101
Pu (lb)Fatigue load limit1124

Mass

Attribute nameAttribute value
Weight(lbs)8.71

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
