Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of Deep Groove, Double Row, Open
Picture of 25mm 4305 Double Row Ball Bearing
Deep Groove, Double Row, Open Ball Bearing
$96.22

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200426
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series4300
Construction248F Open
DutyStandard
SealsNone
Shaft Size25mm
Material52100

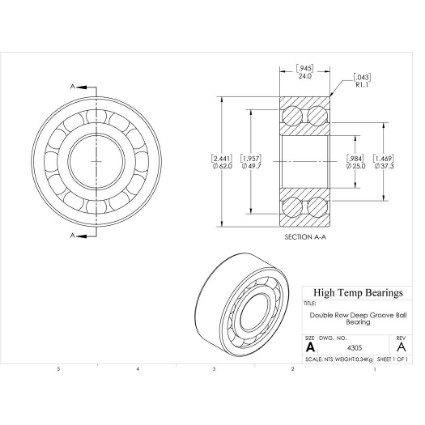

Dimensions

Attribute nameAttribute value
Bore (mm)25
D (mm)62
B (mm)24
r (mm)1.1
D2 (mm)49.7
d1 (mm)37.3

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)55.5
damin (mm)31.5

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed18000
Nmax (RPM)Limiting speed10000
krMinimum radial load factor60
foCalculation factor13
C (lb)Dynamic load capacity7171
C0 (lb)Static load capacity5036
Pu (lb)Fatigue load limit214

Mass

Attribute nameAttribute value
Weight(lbs)0.75

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
