30mm Split Pillow Block Mounted 500 °F PTFE Bearing|High Temp Bearings

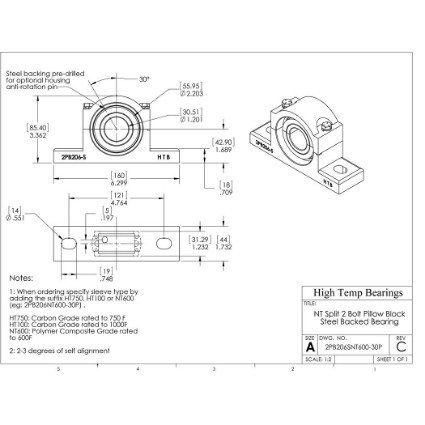

Picture of Split Pillow Block NT600 Composite Sleeve Bearing

Pillow Block 500 °F Split Mounted PTFE Composite Sleeve Bearing

$767.48

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Fully split, self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM. It is dimensionally interchangeable with a solid mounted bearing.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		104034
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SSP
Construction		Split Pillow Block
Shaft Size		30mm
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		1.201
ShaftDia (in)		1.181
A (in)		1.232
B (in)		6.299
C (in)		1.732
D (in)		4.764
H (in)		0.79
J (in)		3.362
L (in)		2.23
M (in)		1.689
S1 (in)		0.551
S2 (in)		0.748

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	732
10 RPM (lb)	Load capacity at 10 RPM	732
50 RPM (lb)	Load capacity at 50 RPM	732
100 RPM (lb)	Load capacity at 100 RPM	732
200 RPM (lb)	Load capacity at 200 RPM	732
Max Cap Load (lb)		732
Max Thrust Load (lb)		73

Mass

Attribute name		Attribute value
Weight(lbs)		4.1

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500

Associated Products

Attribute name		Attribute value
Bearing Insert		SSP206-NT6-30
