30mm 750 °F Carbon Pillow Block Bearing|High Temp Bearings

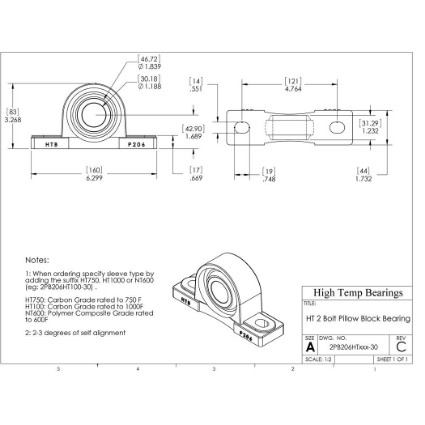

Picture of Pillow Block HT750 Carbon Sleeve Bearing

Pillow Block 750 °F Solid Mounted Carbon Sleeve Bearing

$278.22

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		300100
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		Pillow Block
Shaft Size		30mm
Material		HT750

Dimensions

Attribute name		Attribute value
Bore (in)		1.188
ShaftDia (in)		1.181
A (in)		1.232
B (in)		6.496
C (in)		1.732
D (in)		4.764
H (in)		0.669
J (in)		3.268
L (in)		1.839
M (in)		1.689
S1 (in)		0.551
S2 (in)		0.748

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	2100
10 RPM (lb)	Load capacity at 10 RPM	1050
50 RPM (lb)	Load capacity at 50 RPM	1050
100 RPM (lb)	Load capacity at 100 RPM	680
200 RPM (lb)	Load capacity at 200 RPM	340
Max Cap Load (lb)		820
Max Thrust Load (lb)		105

Mass

Attribute name		Attribute value
Weight(lbs)		3.1

Safe Loads

Attribute name		Attribute value
Tmax (F)		750
Tmin (F)		-40
Tservice (F)	Max use temperature in air	750

Associated Products

Attribute name		Attribute value
Bearing Insert		HR206-HT7-30
