25mm Split Pillow Block Mounted 750 °F Carbon Bearing|High Temp Bearings

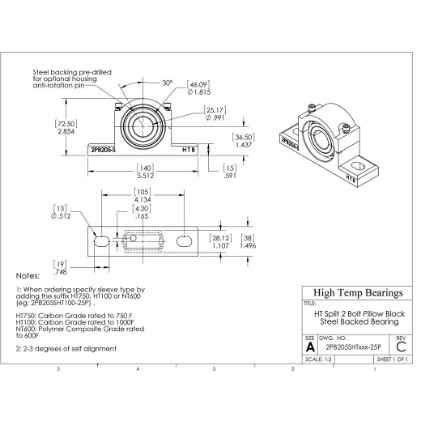

Picture of Split Pillow Block HT750 Carbon Sleeve Bearing

Pillow Block 750 °F Split Mounted Carbon Sleeve Bearing

$730.11

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Fully split, self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring mounted in a split ductile iron housing. It is dimensionally interchangeable with a solid mounted bearing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		104018
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SSP
Construction		Split Pillow Block
Shaft Size		25mm
Material		HT750

Dimensions

Attribute name		Attribute value
Bore (in)		0.991
ShaftDia (in)		0.984
A (in)		1.17
B (in)		5.512
C (in)		1.496
D (in)		4.134
H (in)		0.591
J (in)		2.854
L (in)		1.815
M (in)		1.437
S1 (in)		0.512
S2 (in)		0.748

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	1500
10 RPM (lb)	Load capacity at 10 RPM	750
50 RPM (lb)	Load capacity at 50 RPM	750
100 RPM (lb)	Load capacity at 100 RPM	610
200 RPM (lb)	Load capacity at 200 RPM	315
Max Cap Load (lb)		795
Max Thrust Load (lb)		75

Mass

Attribute name		Attribute value
Weight(lbs)		2.5

Safe Loads

Attribute name		Attribute value
Tmax (F)		750
Tmin (F)		-40
Tservice (F)	Max use temperature in air	750

Associated Products

Attribute name		Attribute value
Bearing Insert		SSP205-HT7-25
