1-1/2" 1000 °F Carbon 2 Bolt Flange Bearing|High Temp Bearings

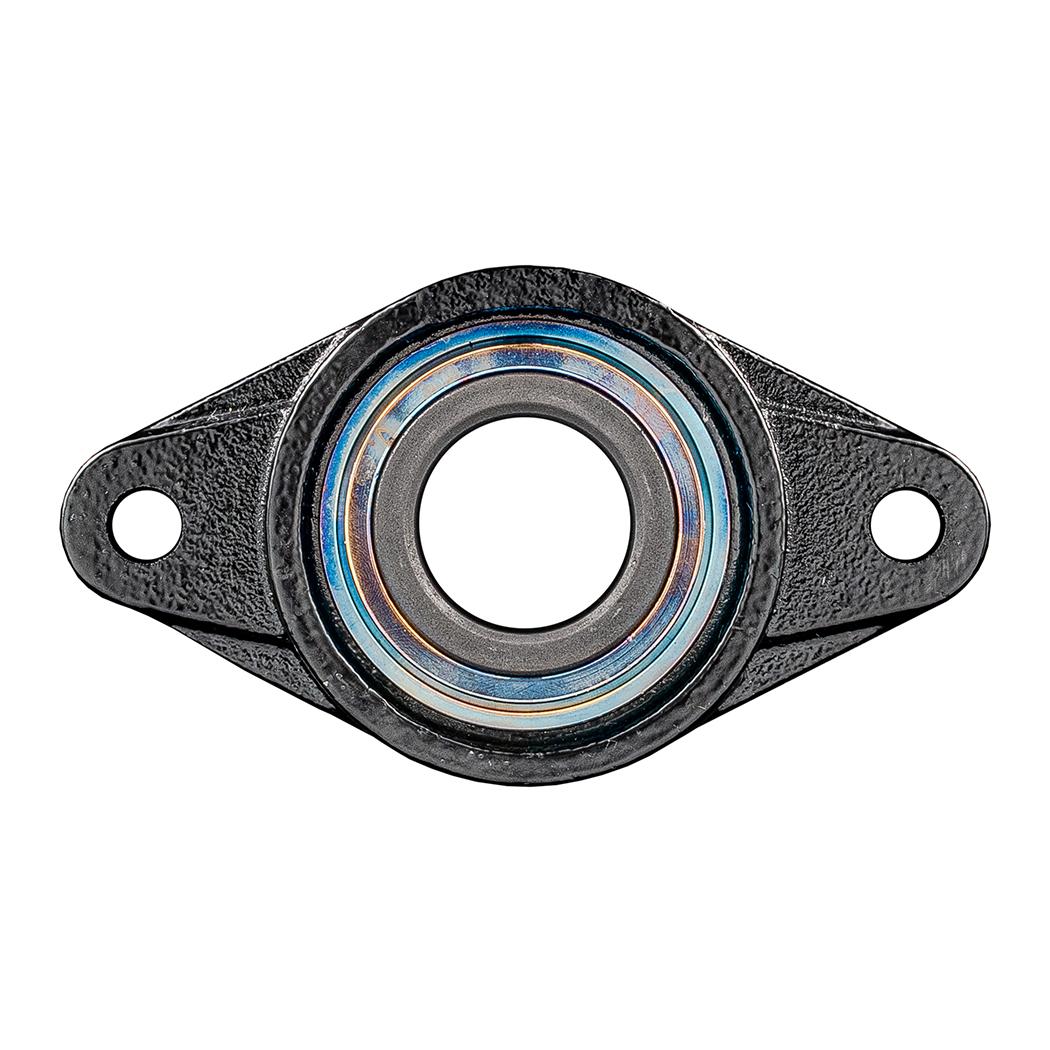

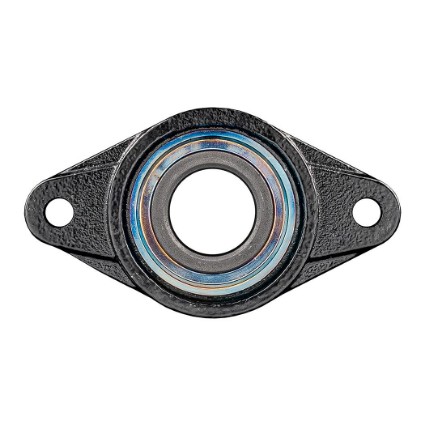

Picture of 2-Bolt Flange HT1000 Carbon Sleeve Bearing

2-Bolt Flange 1000 °F Solid Mounted Carbon Sleeve Bearing

$454.43

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		300026
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		2-Bolt Flange
Shaft Size		1-1/2"
Material		HT1000

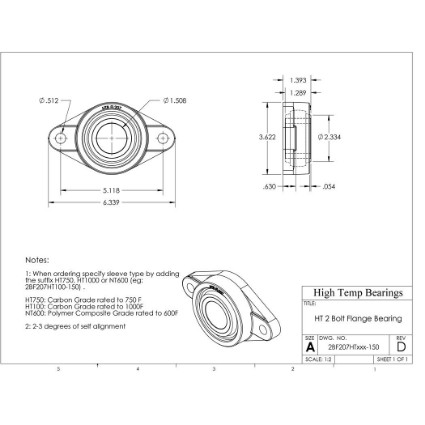

Dimensions

Attribute name		Attribute value
Bore (in)		1.508
ShaftDia (in)		1.5
A (in)		1.289
B (in)		6.339
C (in)		1.393
D (in)		5.118
F (in)		0.512
H (in)		0.63
J (in)		0.54
L (in)		2.334
M (in)		3.622

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	3200
10 RPM (lb)	Load capacity at 10 RPM	1610
50 RPM (lb)	Load capacity at 50 RPM	1610
100 RPM (lb)	Load capacity at 100 RPM	855
200 RPM (lb)	Load capacity at 200 RPM	430
Max Cap Load (lb)		1710
Max Thrust Load (lb)		161

Mass

Attribute name		Attribute value
Weight(lbs)		2.9

Safe Loads

Attribute name		Attribute value
Tmax (F)		1000
Tmin (F)		-200
Tservice (F)	Max use temperature in air	1000

Associated Products

Attribute name		Attribute value
Bearing Insert		HR207-HT1-150
